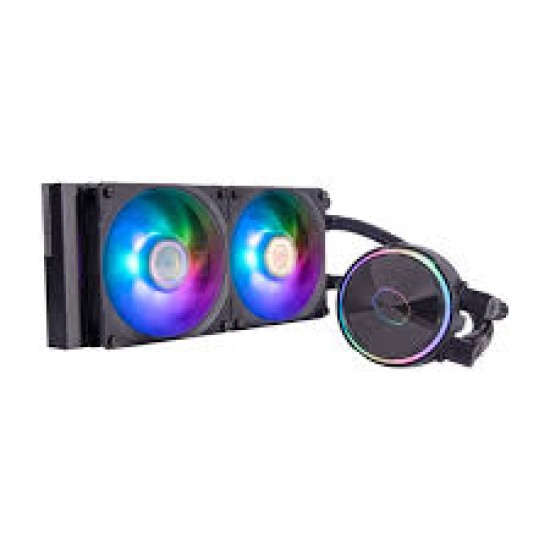

COOLER MASTER LIQUID PL240 FLUX BLACK MLY-D24M-A23PZ-R1

COOLER MASTER LIQUID PL240 FLUX BLACK MLY-D24M-A23PZ-R1
COOLER MASTER LIQUID PL240 FLUX BLACK MLY-D24M-A23PZ-R1
Cooling Uncompromised
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.

Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.

Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.

Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.
  • Model: 4719512123652
  • Weight: 2.42kg
  • Dimensions: 35.00cm x 28.50cm x 15.00cm
  • MPN: MLY-D24M-A23PZ-R1
COOLER MASTER
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

Specifications

Weight & dimensions
Pump depth 7.5 cm
Pump height 4 cm
Pump width 8.9 cm
Radiator depth 12 cm
Radiator height 2.72 cm
Radiator width 27.7 cm
Design
Fan connector 4-pin
Illumination colour Multi
Illumination LED Yes
Product colour Black
Radiator material Aluminum
Suitable location Processor
Features
Type Liquid cooling kit
Power
Fan voltage 12 V
Pump power consumption 6 W
Pump voltage 12 V
Rated current 0.15 A
Safety current 0.3 Ah
Weight & dimensions
Weight 1.43 kg
Weight & dimensions
Fan dimensions (W x D x H) 120 x 25 x 120 mm
Packaging data
Package height 147 mm
Package width 285 mm
Package depth 348 mm
Package weight 2.58 kg
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case height 372 mm
Master (outer) case length 585 mm
Master (outer) case width 460 mm
Products per master (outer) case 6 pc(s)
Performance
Country of origin China
Fan diameter 12 cm
Maximum air pressure 2.96 mmH2O
Maximum airflow 72.37 cfm
Noise level (high speed) 32 dB
Pulse-width modulation (PWM) support Yes
Pump connector 4-pin
Pump noise level 15 dB
Pump's mean time to failure (MTTF) 210000 h
Rotational speed (max) 2300 RPM
Rotational speed (min) 0 RPM
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4
