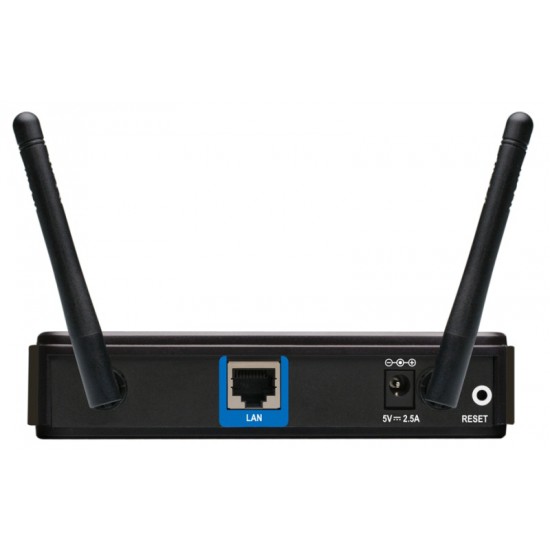

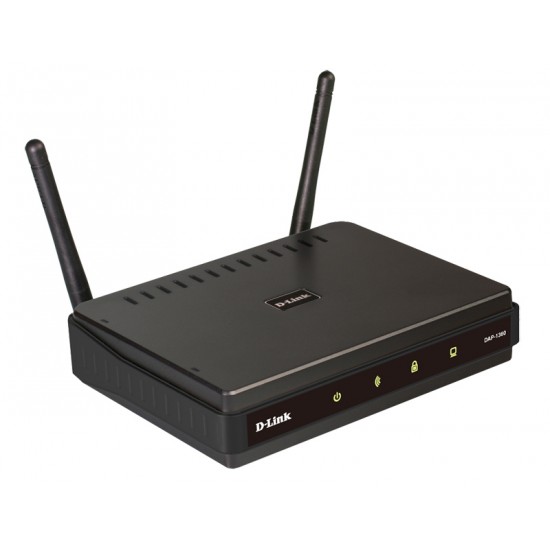

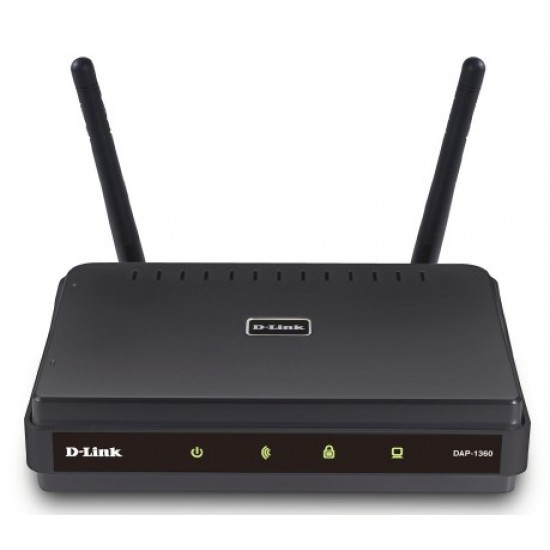

D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360

D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
D-LINK ROUTER OPEN SOURCE ACCESS POINT DAP-1360
CONNECT HOME AND SOHO TO A WIRELESS NETWORK
Connect this Access Point to a broadband modem and wirelessly share your Internet connection. The D-Link DAP-1360 access point is a draft 802.11n compliant device that delivers up to 14x faster speeds1 and 6x farther range1 than 802.11g while staying backward compatible with 802.11g and 802.11b devices. Enjoy surfing the web, checking e-mail, and chatting with family and friends online.

PROTECT YOUR WIRELESS NETWORK AND DATA EASILY
The DAP-1360 provides 64/128-bit WEP encryption and WPA/WPA2 security to protect your network and wireless data. This device also supports WiFi Protected Setup (WPS) to quickly and securely setup a wireless network. In addition, it also provides MAC address filtering a nd the disable SSID Broadcast function to limit outsiders’ access to your home and office network.

FLEXIBLY CONFIGURE YOUR AP FOR DIFFERENT APPLICATIONS
The DAP-1360 can be configured to operate as (1) an Access Point to act as a central hub for wireless users, (2) a Wireless Client to connect to another Access Point, (3) a Bridge to joint two wireless workgroups together, (4) a Bridge with AP to act as wireless hub and a bridge at the same time, (5) a Repeater to extend the wireless coverage to cover all “dead” spots, (6) a WISP Client Router to let wireless Internet service subscribers share Internet connection with home/office Ethernet-enabled computers without the need for an extra router, or (7) a WISP Repeater to let WISP subscribers share Internet connection with wireless computers without any extra router.

EASY TO INSTALL AND USE
With D-Link Setup Wizard, you can set up your wireless network in minutes. It configures your DAP-1360’s operation mode and makes it easy to add new wireless devices onto the network, and helps you create a simple wireless network for your home and office.
  • Model: 0790069323058
  • Weight: 0.50kg
  • Dimensions: 10.00cm x 15.00cm x 20.00cm
  • MPN: DAP-1360/E

Specifications

Design
Internal N
LED indicators LAN, Power, Status, WLAN
Features
2.4 GHz Y
Wireless technology 802.11b/g/n
Other features
Web-based management Y
Network
Cabling technology 10/100Base-T(X)
Ethernet LAN data rates 10,100 Mbit/s
Frequency band 2.4 - 2.4835 GHz
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Ports & interfaces
DC-in jack Y
Ethernet LAN (RJ-45) ports 1
Frequency range 2400 - 2483.5 MHz
Power
Power requirements 5VDC, 2.5A
Weight & dimensions
Dimensions (WxDxH) 144 x 109 x 30 mm
Weight 229 g
Packaging data
Package height 68 mm
Package width 208 mm
Package depth 274 mm
Package weight 600 g
Antenna
Antenna connector type RP-SMA
Antenna features Detachable antenna
Antenna gain level (max) 2 dBi
Antennas quantity 2
Certificates
Certification FCC B
Logistics data
Master (outer) cases per pallet (air) 30 pc(s)
Master (outer) cases per pallet (sea) 48 pc(s)
Pallet gross length 120 cm
Pallet gross weight (air) 223 kg
Pallet gross weight (sea) 343.6 kg
Pallet gross width 110 cm
Pallet height (air) 133.5 cm
Pallet height (sea) 2.06 m
Products per pallet (air) 300 pc(s)
Products per pallet (sea) 480 pc(s)
Products per shipping (inner) case 10 pc(s)
Shipping (inner) case gross weight 6.7 kg
Shipping (inner) case height 24 cm
Shipping (inner) case length 57.1 cm
Shipping (inner) case net weight 6 kg
Shipping (inner) case width 36 cm
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 55 °C
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -10 - 70 °C
Packaging content
AC adapter included Y
Performance
Channels quantity 13 channels
Interface RJ-45
Maximum data transfer rate 300 Mbit/s
Quality of Service (QoS) support Y
Security
MAC address filtering Y
Security algorithms 128-bit WEP,64-bit WEP,SSID,TKIP,WPA-EAP,WPA-PSK,WPA2-EAP,WPA2-PSK,WPS
Technical details
Networking features Fast Ethernet
Wireless LAN features
Modulation CCK,DBPSK,DQPSK,OFDM
