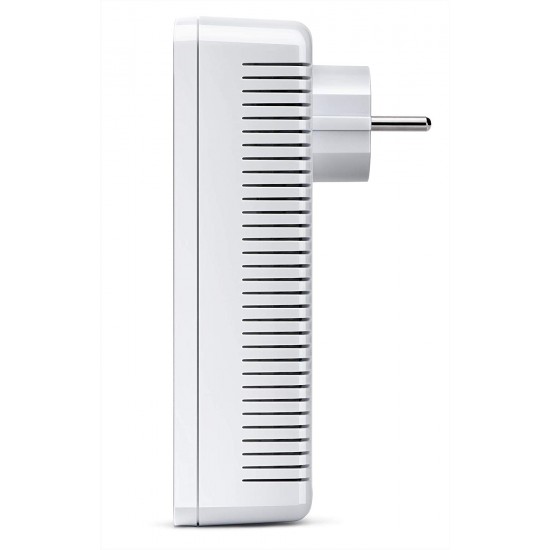

DEVOLO MAGIC 1 WIFI 2-1-1
- Model: 4250059683570
- Weight: 0.48kg
- Dimensions: 19.20cm x 11.80cm x 9.20cm
- MPN: 8357
DEVOLO MAGIC 1 WIFI 2-1-1
Your shopping cart is empty!
| Design | |
| Housing material | Plastic |
| LED indicators | PLC, WLAN |
| Product colour | White |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Software | |
| Mac compatibility | Y |
| Mac operating systems supported | Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 7 |
| Power | |
| AC input frequency | 50 Hz |
| AC input voltage | 196 - 250 V |
| Current | 16 A |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 5.1 W |
| Weight & dimensions | |
| Depth | 40 mm |
| Height | 152 mm |
| Width | 76 mm |
| Packaging data | |
| Package type | Box |
| Package height | 92 mm |
| Package width | 190 mm |
| Package depth | 118 mm |
| Package weight | 570 g |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | |
| Manual | Y |
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Y |
| Performance | |
| Built-in power socket | Y |
| Damping filter | 2 - 80 MHz |
| Filter characteristics | -22 - -45 dB |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum operating distance | 400 m |
| Power plug | Type F |
| PowerLine standard | HomePlug AC |
| Security | |
| Security algorithms | 128-bit AES,WPA,WPA2,WPS-PBC,WPS-PIN |
| System requirements | |
| Linux operating systems supported | Ubuntu 16.04 |
| Mobile operating systems supported | Android 5.1 |
| Wireless LAN features | |
| Modulation | 64-QAM,256-QAM,1024-QAM,4096-QAM,BPSK,QPSK |
| WLAN data transfer rates supported | 300,867 Mbit/s |
