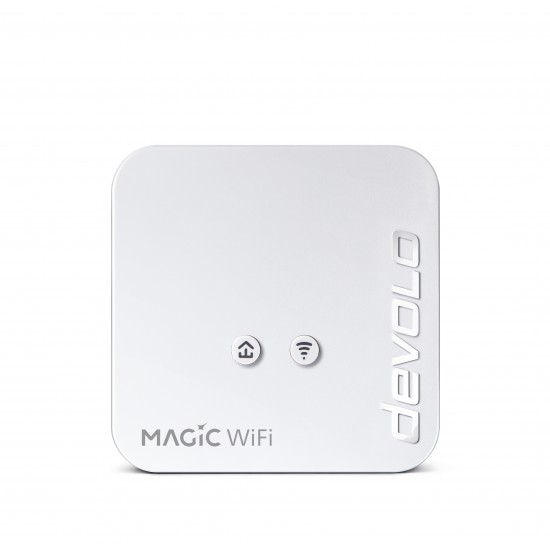

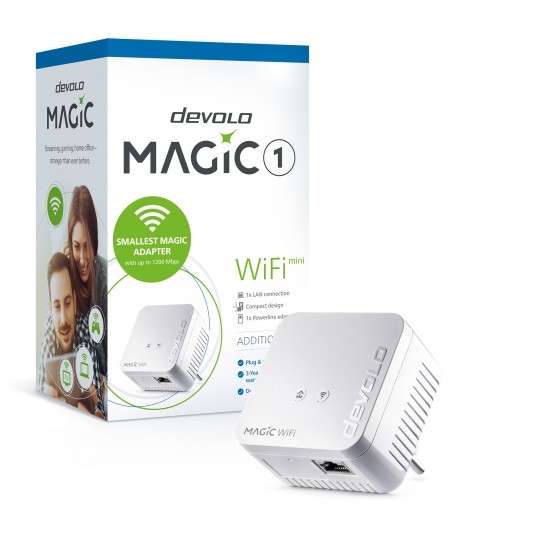

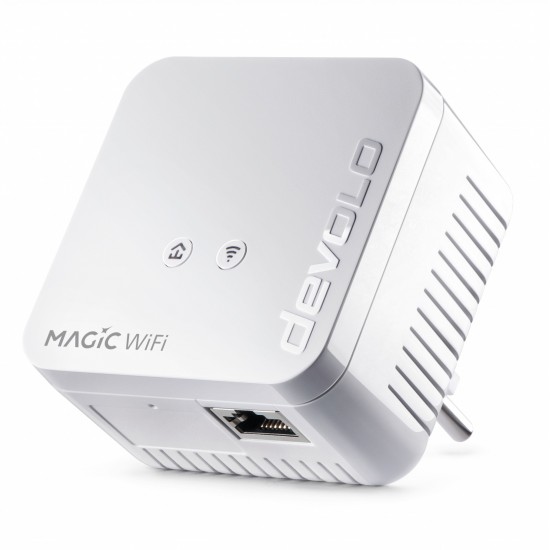

DEVOLO MAGIC 1 WIFI MINI
- Model: 4250059685598
- Weight: 0.67kg
- Dimensions: 6.80cm x 6.80cm x 4.10cm
- MPN: 8559
DEVOLO MAGIC 1 WIFI MINI
Your shopping cart is empty!
| Design | |
| LED indicators | PLC |
| Product colour | White |
| Features | |
| Compatible products | devolo Magic |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1200 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| MIMO | Y |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Software | |
| Mac compatibility | Y |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Windows operating systems supported | Windows 10,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 x64,Windows 8,Windows 8 Pro,Windows 8 Pro x64 |
| Ergonomics | |
| Plug and Play | Y |
| Power | |
| AC input frequency | 50 Hz |
| AC input voltage | 196 - 250 V |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 4.4 W |
| Weight & dimensions | |
| Depth | 68 mm |
| Height | 41 mm |
| Width | 68 mm |
| Packaging data | |
| Package type | Box |
| Package height | 92 mm |
| Package width | 190 mm |
| Package depth | 118 mm |
| Package weight | 335 g |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Certificates | |
| Certification | CE |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Manual | Y |
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Y |
| Performance | |
| Built-in power socket | Y |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum operating distance | 400 m |
| Power plug | Type C |
| PowerLine standard | HomePlug AC |
| Quality of Service (QoS) support | Y |
| Security | |
| Security algorithms | 128-bit AES,WPA,WPA2,WPS,WPS-PBC,WPS-PIN |
| System requirements | |
| Linux operating systems supported | Ubuntu 14.10,Ubuntu 15.04,Ubuntu 15.10 |
| Mobile operating systems supported | Android, iOS |
| Wireless LAN features | |
| Modulation | 64-QAM,256-QAM,1024-QAM,4096-QAM,BPSK,DSSS,OFDM,QPSK |
| WLAN data transfer rates supported | 300,1200 Mbit/s |
