DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S

DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S
DEVOLO MAGIC 1 WIFI MINI STARTER KIT 1200 MBIT/S

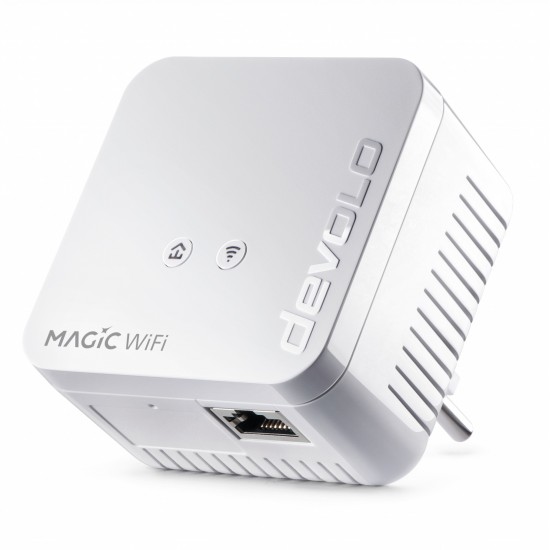

The Magic 1 WiFi mini gives you a reliable, stable internet signal – right where you need it. Practical: Its compact design makes the adapter extremely inconspicuous – but you will feel its power constantly. This guarantees that streaming series will be more fun and working from your home office more relaxed.

Notice: devolo Magic uses the innovative G.hn technology, which offers the highest transmission speeds. The devices therefore only take advantage of full output in a pure G.hn environment, when there are no other PLC adapters simultaneously in use.

State-of-the-art technology: G.hn

We offer state-of-the-art second-generation G.hn chips. G.hn is a new technical standard that significantly enhances transmission speed and contributes to improved internet stability. It allows you to relax and enjoy the entertainment capabilities of the future – the Magic adapters have already brought the foundation to your home.

Streaming

Film streaming will soon be available in 8K resolution.

Cloud Gaming

In the area of gaming, the trend is away from classical game consoles towards complete streaming via an external server.

Ideally equipped for modern entertainment

But if you want to stream an ultra-high-resolution film or a game with high-end graphics without lags, you need high transmission speed. The Magic 1 WiFi mini and other Magic adapters equip you for modern entertainment.

Installation

After you unpack the Magic 1 WiFi mini Starter Kit, installation is fast. Plug the adapters into available power sockets and connect one of them to your router via LAN. Now it’s a matter of seconds: The Magic adapters automatically connect to each other and are immediately ready to go.

Integrate Magic 1 WiFi mini into your existing network

The same is true if you want to integrate the Magic 1 WiFi mini into your existing Powerline network. Just plug the expansion adapter into the desired power socket, push the button – and you’re done. After a short time, the Magic adapter will have synchronised itself with all the adapters that were already installed, immediately expanding your network.

Intuitive. Simple. Free of charge. Download it now!

Get started with the best network! Fantastically individualised and wonderfully simple. The new devolo Home Network App allows things that were previously reserved for experts – for anyone, at any time. Just download it and get started. The new devolo Home Network App is compatible with all devolo Magic adapters – with and without WiFi function. It is available for both iOS and Android devices.

Innovative technology

Move freely about your home – mesh technology makes irritating network changes a thing of the past. Network name and password are identical for all WiFi transmitters/access points, and your device automatically connects with the strongest signal source.

Magic 1 WiFi mini adapters are also equipped with a Fast Ethernet port (10/100 Mbps) so that you can connect such devices as a Smart TV to the internet via LAN.

Trust the world’s market leader

devolo is among the global leaders in the manufacture of dLAN and WiFi adapters. Since 2002, we have continuously developed our technology in order to provide our customers with a promising online experience throughout their homes. Over 40 million of our adapters are in use – and more are being installed all the time. Numbers like that are possible only because we keep our promises to our customers. Find out for yourself!

Scope of delivery

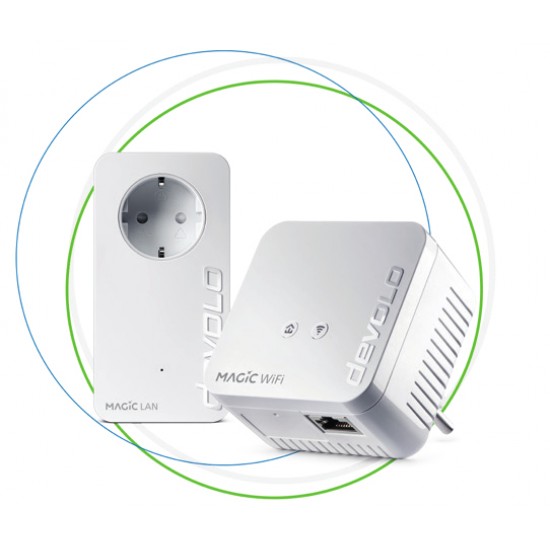

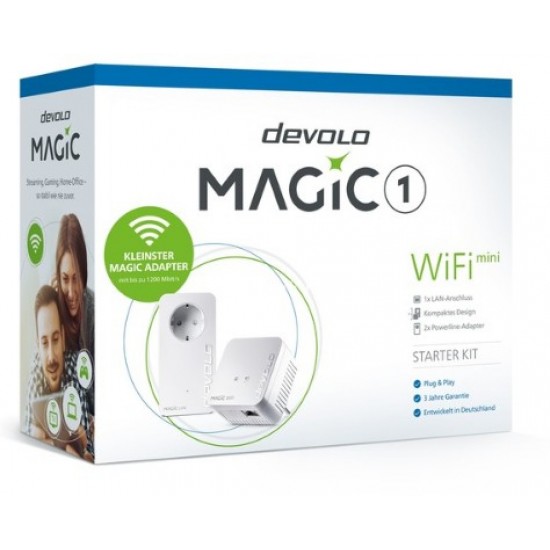

Starter Kit
- 1x devolo MAGIC 1 WiFi mini Adapter
- 1x devolo MAGIC 1 LAN Adapter
- 1x Installation guide
- 2x Ethernet cable (2m)
  • Model: 4250059685680
  • Weight: 0.70kg
  • Dimensions: 18.70cm x 23.30cm x 9.20cm
  • MPN: 8568

Specifications

Design
LED indicators PLC, WLAN
Product colour White
Network
Ethernet LAN Y
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN interface type Fast Ethernet
MIMO Y
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Wi-Fi Y
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Software
Mac compatibility Y
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Ergonomics
Plug and Play Y
Power
AC input frequency 50 Hz
AC input voltage 196 - 250 V
Power consumption (standby) 1 W
Power consumption (typical) 4.4 W
Weight & dimensions
Depth 41 mm
Height 68 mm
Width 68 mm
Packaging data
Package type Box
Package height 92 mm
Package width 190 mm
Package depth 231 mm
Package weight 670 g
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 70 °C
Packaging content
Cables included LAN (RJ-45)
Quantity per pack 2 pc(s)
Quick installation guide Y
Performance
Built-in power socket N
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
Maximum data transfer rate 1200 Mbit/s
Maximum operating distance 400 m
Power plug Type C
Security
Security algorithms 128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN
System requirements
Linux operating systems supported Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10
Mobile operating systems supported Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Wireless LAN features
Modulation 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK
