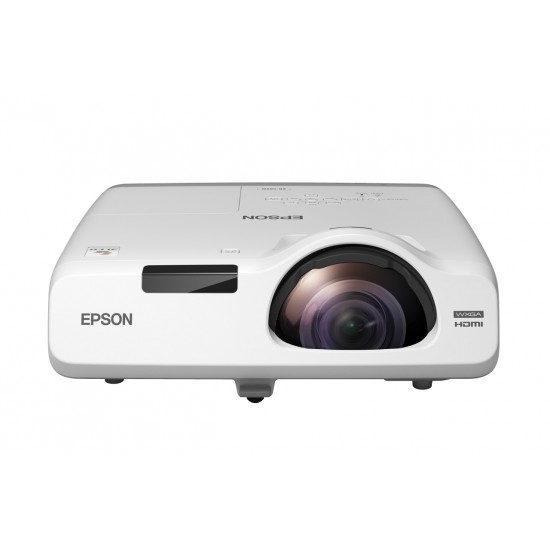

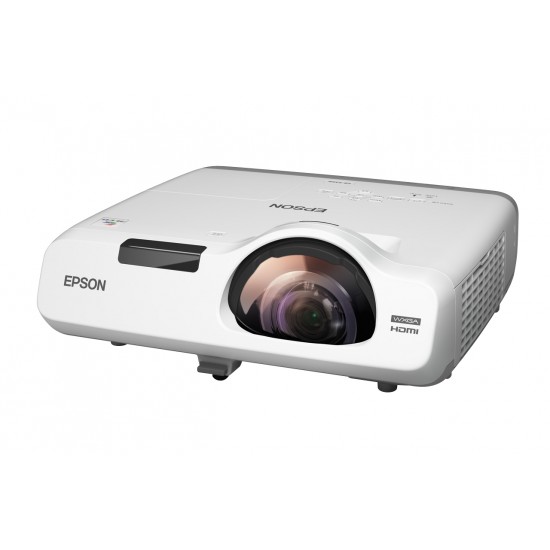

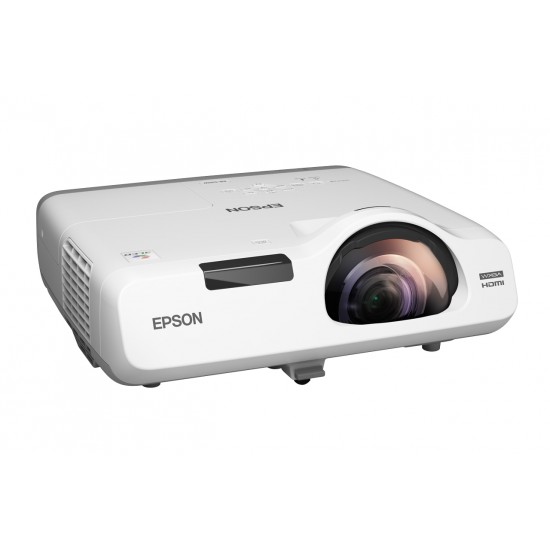

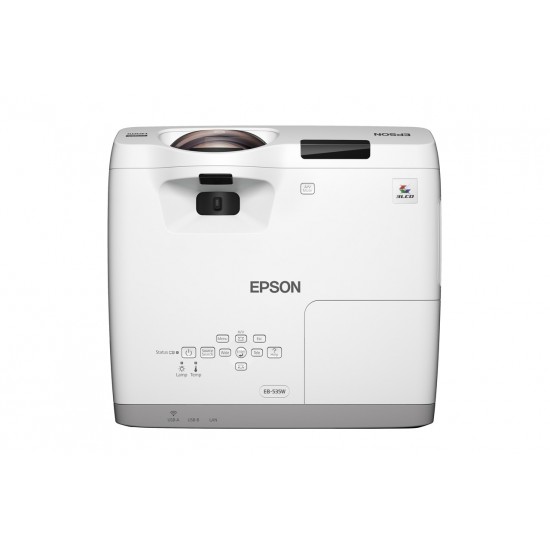

EPSON PROJECTOR EB-535W
High-quality image
Complete with our 3LCD technology, the EB-535W displays superior-quality, bright images with more accurate colours. The image can be seen even in brightly-lit rooms thanks to an equally high white and colour light output. Image detail is clear thanks to a high contrast ratio and our new short throw lens means sharper images and improved focus.
More value for your money
The lamp in the EB-535W now lasts up to 10,000 hours in eco mode. The projector even conserves power during presentations by automatically adjusting the light output depending on the content. The A/V mute function pauses the presentation and dims the lamp by 70% to conserve energy while the projector is not in use. The projectors' built-in 16w speaker means audio content can be played directly through the projector, without the need for additional external speakers. The microphone input transforms the projector into a PA system, meaning presenters can be easily heard in a classroom environment.
Easy to set up and use
The EB-535W has both horizontal and vertical keystone correction to achieve a perfectly shaped image and help avoid distortion. When setting up several projectors, the OSD settings can be copied from one projector to many others meaning you don’t need to set up projectors individually. Multi-PC projection software allows content from four devices, including PC’s, tablets, smart phones, to be displayed simulatenously.
Complete with our 3LCD technology, the EB-535W displays superior-quality, bright images with more accurate colours. The image can be seen even in brightly-lit rooms thanks to an equally high white and colour light output. Image detail is clear thanks to a high contrast ratio and our new short throw lens means sharper images and improved focus.
More value for your money
The lamp in the EB-535W now lasts up to 10,000 hours in eco mode. The projector even conserves power during presentations by automatically adjusting the light output depending on the content. The A/V mute function pauses the presentation and dims the lamp by 70% to conserve energy while the projector is not in use. The projectors' built-in 16w speaker means audio content can be played directly through the projector, without the need for additional external speakers. The microphone input transforms the projector into a PA system, meaning presenters can be easily heard in a classroom environment.
Easy to set up and use
The EB-535W has both horizontal and vertical keystone correction to achieve a perfectly shaped image and help avoid distortion. When setting up several projectors, the OSD settings can be copied from one projector to many others meaning you don’t need to set up projectors individually. Multi-PC projection software allows content from four devices, including PC’s, tablets, smart phones, to be displayed simulatenously.
- Model: 8715946541440
- Weight: 1.00kg
- Dimensions: 12.00cm x 15.00cm x 15.00cm
- MPN: V11H671040
Specifications
Design | |
Cable lock slot type | Kensington |
Market positioning | Presentation |
Placement | Desktop |
Product colour | White, Grey |
Product type | Short throw projector |
Display | |
3D | N |
Contrast ratio (typical) | 16000:1 |
Native aspect ratio | 16:10 |
Vertical scan range | 50 - 85 Hz |
Features | |
Lamp power | 215 W |
Noise level (economic mode) | 29 dB |
Loudspeakers | |
RMS rated power | 16 W |
Network | |
Ethernet LAN | Y |
Ethernet LAN data rates | 10,100 Mbit/s |
Wi-Fi | Y |
Video | |
Analog signal format system | NTSC,NTSC 4.43 |
HD-Ready | Y |
Video processing | 10 bit |
Ports & interfaces | |
Audio (L/R) in | 1 |
DVI port | N |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
Microphone in | Y |
Serial interface type | RS-232 |
USB 2.0 ports quantity | 2 |
USB connector type | USB Type-A, USB Type-B |
VGA (D-Sub) ports quantity | 3 |
Ports & interfaces | |
Component video (YPbPr/YCbCr) in | 2 |
Composite video in | 1 |
PC Audio in | Y |
RS-232 ports | 1 |
S-Video inputs quantity | 1 |
Software | |
Bundled software | iProjection, Epson Projector Management |
Ergonomics | |
Cable lock slot | Y |
Power | |
AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Power consumption (economy mode) | 221 W |
Power consumption (PowerSave) | 221 W |
Power consumption (standby) | 0.28 W |
Power consumption (typical) | 298 W |
Power source | AC |
Weight & dimensions | |
Depth | 315 mm |
Height | 94 mm |
Weight | 3.7 kg |
Width | 344 mm |
Packaging data | |
Package height | 215 mm |
Package width | 386 mm |
Package depth | 497 mm |
Package weight | 5.86 kg |
Audio | |
Built-in speaker(s) | Y |
Lens system | |
Fixed focal length | 6.4 mm |
Focal length range | 6.4 mm |
Focus | Manual |
Throw ratio | 0.48 - 0.65:1 |
Zoom ratio | 1.35:1 |
Zoom type | Auto |
Light source | |
Light source type | Lamp |
Service life of light source | 5000 h |
Service life of light source (economic mode) | 10000 h |
Logistics data | |
Products per pallet | 40 pc(s) |
Products per pallet (UK) | 60 pc(s) |
Products per pallet layer | 4 pc(s) |
Products per pallet layer (UK) | 6 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 5 - 35 °C |
Storage relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -10 - 60 °C |
Packaging content | |
Cables included | AC, VGA |
Manual | Y |
Quantity per pack | 1 pc(s) |
Remote control included | Y |
WLAN adapter included | Y |
Performance | |
Country of origin | China |
Full HD | N |
Noise level | 37 dB |
Number of colours | 1.07 billion colours |
Projector | |
Colour light output | 3400 ANSI lumens |
Keystone correction, horizontal | -15 - 15° |
Keystone correction, vertical | -15 - 15° |
Projection distance | 0.5 - 1.2 m |
Projection technology | 3LCD |
Projector brightness | 3400 ANSI lumens |
Projector brightness (economic mode) | 1900 ANSI lumens |
Projector native resolution | WXGA (1280x800) |
Screen size compatibility | 1346.2 - 2946.4 mm (53 - 116") |
White light output | 3400 ANSI lumens |
Security | |
Password protection | Y |
Sustainability | |
Sustainability certificates | TCO |
Technical details | |
USB display function | 3 in 1: Image / Mouse / Sound |
