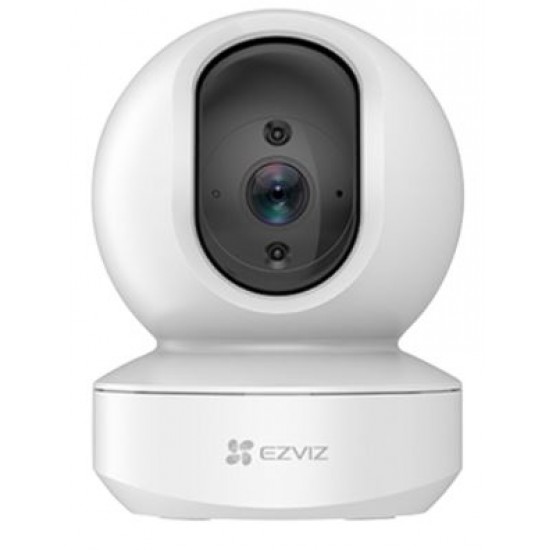

EZVIZ SMART HOME CAMERA CS-TY1 WIFI 4MP
- Model: 6941545605401
- Weight: 0.54kg
- Dimensions: 19.00cm x 10.50cm x 10.50cm
- MPN: 303101948
EZVIZ SMART HOME CAMERA CS-TY1 WIFI 4MP
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Display | |
| Placement supported | Indoor |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 55° |
| Features | |
| Type | IP security camera |
| Multimedia | |
| Video formats supported | H.264,H.265 |
| Network | |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Wi-Fi data rate (max) | 72 Mbit/s |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Video | |
| Digital Wide Dynamic Range (DWDR) | Y |
| Noise reduction technology | 3D noise reduction |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| DC output current | 2 A |
| DC output voltage | 5 |
| Power consumption (max) | 5 W |
| Power source type | DC |
| Weight & dimensions | |
| Depth | 88 mm |
| Height | 119 mm |
| Weight | 259 g |
| Width | 88 mm |
| Packaging data | |
| Package height | 186 mm |
| Package width | 103 mm |
| Package depth | 103 mm |
| Camera | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Viewing angle, diagonal | 124° |
| Certificates | |
| Certification | FCC / UL / CE / WEEE / REACH / ROHS |
| Image sensor | |
| Number of sensors | 4 |
| Progressive scan | Y |
| Lens system | |
| Fixed focal length | 4 mm |
| Maximum aperture number | 2.2 |
| Number of lenses | 1 |
| Microphone | |
| Noise reduction | Y |
| Night vision | |
| LED type | IR |
| Night vision | Y |
| Night vision distance | 10 m |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Y |
| Performance | |
| Day/night mode | Y |
| Frame rate | 20 fps |
| Infrared (IR) cut-off filter | Y |
| Wide Dynamic Range (WDR) | Y |
| Picture quality | |
| Total megapixels | 4 MP |
| Printing | |
| Maximum resolution | 2560 x 1440 pixels |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Video motion detection | Y |
| Storage | |
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
