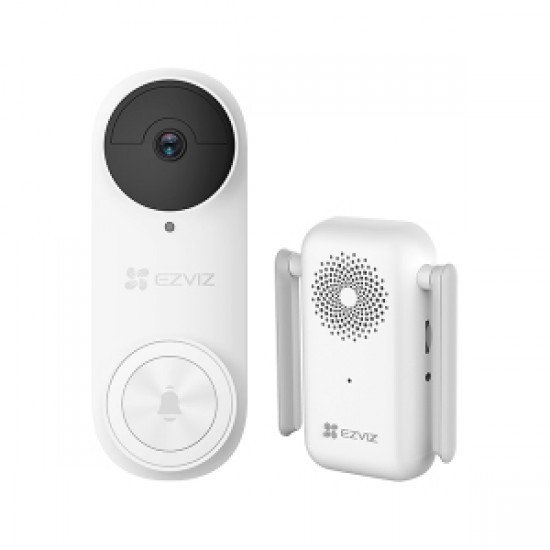

EZVIZ WIRE-FREE VIDEO DOORBELL CS-DB2 5MP

EZVIZ WIRE-FREE VIDEO DOORBELL CS-DB2 5MP
EZVIZ WIRE-FREE VIDEO DOORBELL CS-DB2 5MP
Wire-free and worry-free front door protection.
Know who’s at your doorstep and why, even before they ring the bell. The EZVIZ DB2 Pro features ultra-sharp 2K+ resolution, wide field-of-view, large battery capacity, and extremely easy installation. It’s the new go-to security option for any apartment dweller or villa owner.

Clear, vivid view with EZVIZ’s first 2K+ video doorbell.
Featuring the top resolution of its kind, the DB2 Pro renders crisp, clear video to capture every vivid detail of the visitors, and provides 5-meter infrared night vision for 24/7 protection.

A well-thought-out solution in one kit.
To make sure you hear the ring even from afar, EZVIZ pairs it with an indoor chime. Even better, the chime helps extend Wi-Fi signal while boosts the network connectivity for the doorbell. While other wireless doorbells may suffer from network issues, you can always count on the stable connection of the DB2.

Easy to use but hard to tamper with.
In case the doorbell is forcibly removed, a sharp alarm will sound and a mobile alert will be instantly sent to you. What’s more, the DB2 Pro prohibits unauthorized use after theft, thanks to the account binding restriction.

Safe, flexible storage options.
You can insert a microSD card onto the indoor chime to save your recordings locally, without worrying about any data loss even if the doorbell is damaged or lost. You can also subscribe to EZVIZ CloudPlay for unlimited storage space and an additional layer of data protection.
  • Model: 6941545607450
  • Weight: 0.96kg
  • Dimensions: 19.00cm x 28.00cm x 9.00cm
  • MPN: 318500049

Specifications

Design
Form factor Dome
Mounting type Wall
Product colour White
Display
Placement supported Indoor
Features
Type IP security camera
Other features
Reset button Y
Multimedia
Video compression formats H.264,H.265
Network
Wi-Fi Y
Wi-Fi standards 802.11b,802.11g,Wi-Fi 4 (802.11n)
Video
Image quality adjustment DNR
Ports & interfaces
Connectivity technology Wireless
Power
DC output voltage 5
Power consumption (max) 2 W
Power source type DC
Weight & dimensions
Depth 32 mm
Height 150 mm
Weight 241.35 g
Width 58 mm
Audio
Built-in microphone Y
Built-in speaker(s) Y
Signal-to-Noise Ratio (SNR) 72 dB
Camera
Digital zoom 2x
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Sensor type CMOS
Viewing angle, diagonal 176°
Zoom capability Y
Certificates
Certification UL, CE, FCC, REACH, WEEE, RoHS
Ethernet LAN features
Supported network protocols 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Lens system
Number of lenses 1
Night vision
LED type IR
Night vision Y
Night vision distance 5 m
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -20 - 50 °C
Packaging content
Drilling template included Y
Number of cameras 1
Screws included Y
Performance
Frame rate 15 fps
Printing
Maximum resolution 2544 x 1888 pixels
Storage
Compatible memory cards MicroSD (TransFlash)
Maximum memory card size 256 GB
