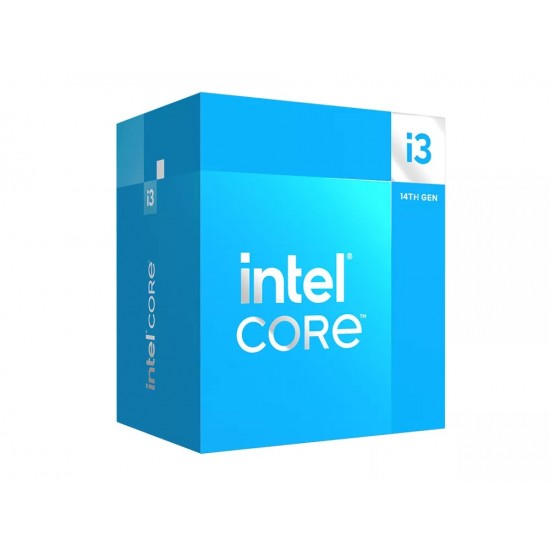

Name: INTEL CORE i3-14100 PROCESSOR 12 MB SMART CACHE BX8071514100
Brand: INTEL
Price: 106.13 EUR
Availability: OutOfStock

INTEL CORE i3-14100 PROCESSOR 12 MB SMART CACHE BX8071514100

Model: 5032037279079
Weight: 0.46kg
Dimensions: 10.50cm x 12.20cm x 8.00cm
MPN: BX8071514100

INTEL

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Specifications

Features
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Direct Media Interface (DMI) Revision	4.0
Market segment	Desktop
Maximum number of PCI Express lanes	20
PCI Express configurations	1x16+1x4, 2x8+1x4
PCI Express slots version	4.0, 5.0
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Use conditions	PC/Client/Tablet
Weight & dimensions
Processor package size	45 x 37.5 mm
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
Multi-Format Codec Engines	1
Number of displays supported (on-board graphics)	4
Number of execution units	24
On-board graphics card	Yes
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1500 MHz
On-board graphics card ID	0x4692
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card OpenGL version	4.5
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
Logistics data
Export Control Classification Number (ECCN)	5A992C
Harmonized System (HS) code	8542310001
Memory
Maximum internal memory	192 GB
Maximum internal memory supported by processor	192 GB
Memory bandwidth (max)	76.8 GB/s
Memory channels	Dual-channel
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Operational conditions
Tjunction	100 °C
Other features
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
L2 cache	5120 KB
Processor
Box	Yes
Cooler included	Yes
Efficient cores	0
Maximum number of DMI lanes	8
Maximum turbo power	110 W
Memory bandwidth supported by processor (max)	76.8 GB/s
Performance cores	4
Performance-core base frequency	3.5 GHz
Performance-core boost frequency	4.7 GHz
Processor ARK ID	236774
Processor base power	60 W
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor codename	Raptor Lake
Processor cores	4
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3 (14th gen)
Processor manufacturer	Intel
Processor model	i3-14100
Processor operating modes	64-bit
Processor socket	LGA 1700
Processor threads	8
Stepping	H0
Processor special features
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Boot Guard	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Speed Shift Technology	Yes
Intel® Standard Manageability (ISM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Volume Management Device (VMD)	Yes
Mode-based Execute Control (MBE)	Yes
Technical details
Launch date	Q1'24
OpenCL version	3.0
Status	Launched
