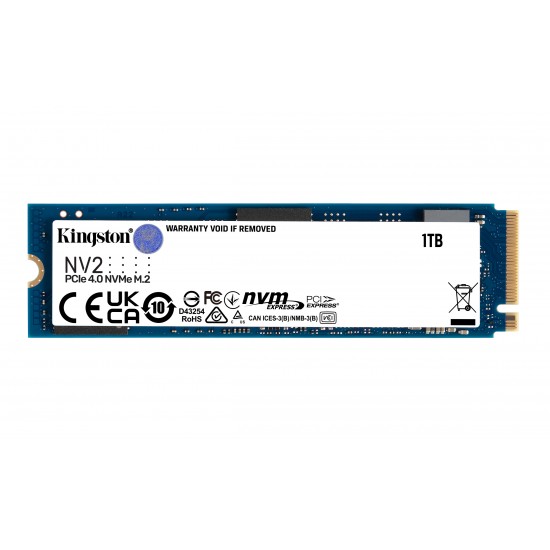

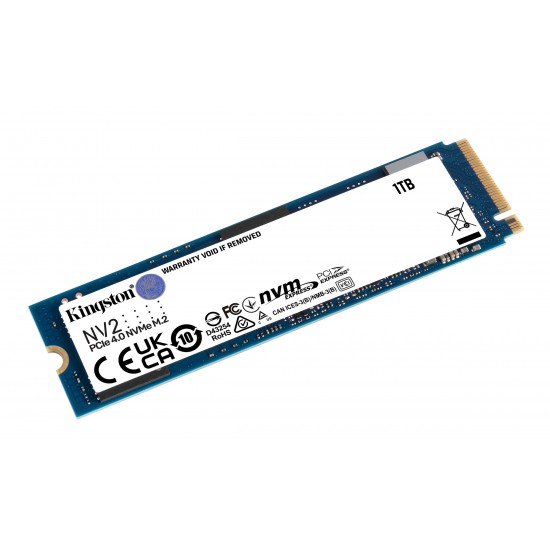

Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds up to 3,500/2,800MB/s* with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage up to 4TB** while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, and DIY motherboards. Available in capacities from 250GB – 4TB** to give you all the space you need for applications, documents, photos, videos, and more.

Gen 4x4 NVMe PCIe performance
Delivers read/ write speeds of up to 3,500/2,800MB/s* for an overall faster system.

Ideal for systems with limited space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small-form-factor PCs.

Extended capacities
Available in a range of high capacities up to 4TB** to meet your data storage requirements.
  • Model: 0740617329919
  • Weight: 0.02kg
  • Dimensions: 18.30cm x 13.00cm x 0.50cm
  • MPN: SNV2S/1000G

Specifications

Features
PCI Express interface data lanes x4
TBW rating 1280
Weight & dimensions
Depth 80 mm
Height 3.5 mm
Weight 7 g
Width 22 mm
Packaging data
Package height 184.2 mm
Package width 129.5 mm
Package depth 8.4 mm
Package weight 10 g
Certificates
Compliance certificates RoHS, CE
Logistics data
Master (outer) case gross weight 393.6 g
Master (outer) case height 69.9 mm
Master (outer) case length 203.2 mm
Master (outer) case width 135.9 mm
Products per master (outer) case 10 pc(s)
Memory
Read speed 3500 MB/s
Write speed 2100 MB/s
Operational conditions
Non-operating vibration 20 G
Operating temperature (T-T) -40 - 85 °C
Operating vibration 2.17 G
Storage temperature (T-T) 0 - 70 °C
Performance
Country of origin China, Taiwan
Interface PCI Express 4.0
Mean time between failures (MTBF) 2000000 h
Memory type 3D NAND
Processor
Component for PC/Laptop
Solid state drive
NVMe Yes
Storage
M.2 SSD size 2280 (22 x 80 mm)
SSD capacity 1 TB
SSD form factor M.2
Technical details
Sustainability compliance Yes
