KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8

KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8
KIOXIA EXCERIA G2 500GB SSD M.2 PCIE 3.1 NYME BICS FLASH TLC LRC20Z500GG8

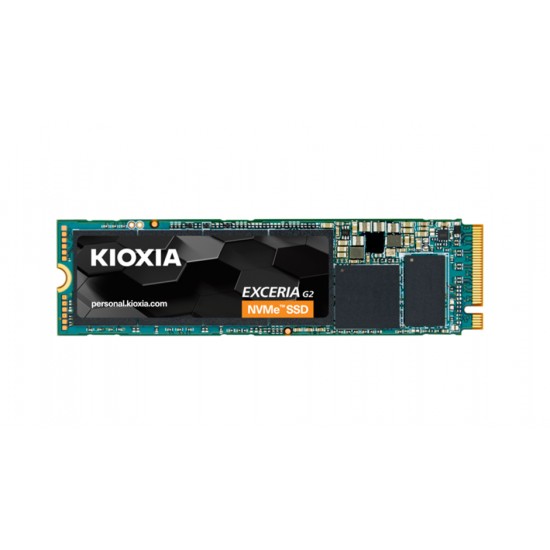

The new 2nd generation KIOXIA EXCERIA G2 SSD Series takes performance to the next level with up to 2,100 MB/s of sequential read speed*1, enabling faster boot ups, file transfers and system responsiveness. Leveraging BiCS FLASH™ 3D flash memory, this updated mainstream-class SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

Performance Made Affordable
The KIOXIA EXCERIA SSD series redefines mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs, the EXCERIA G2 SSD series delivers balanced performance and value that will transform your system.

Small and Compact for an Easy Upgrade

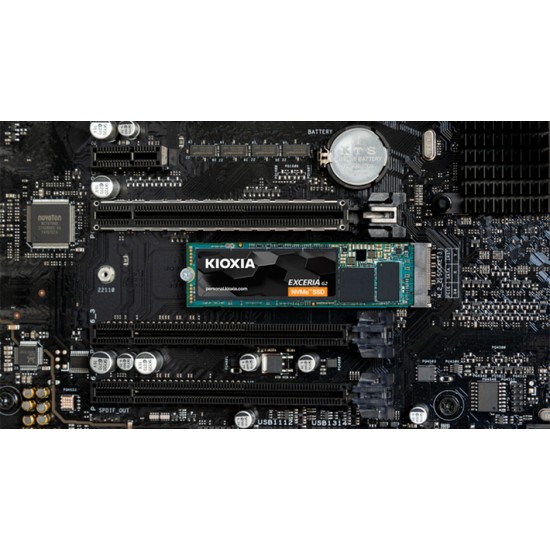

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
  • Model: 4582563853980
  • Weight: 0.04kg
  • Dimensions: 12.00cm x 9.00cm x 2.00cm
  • MPN: LRC20Z500GG8

Specifications

Features
Data transfer rate 32 Gbit/s
M.2 key ID M
NVMe version 1.3c
PCI Express CEM revision 3.1
PCI Express interface data lanes x4
Random read (4KB) 400000 IOPS
Random write (4KB) 400000 IOPS
Sequential read speed (ATTO) 2100 MB/s
Sequential write speed (ATTO) 1700 MB/s
Target workload Mixed Use (MU)
TBW rating 200
TRIM support Yes
Power
Operating voltage 3.3 V
Power consumption (average) 3.5 W
Weight & dimensions
Depth 80 mm
Height 2.23 mm
Weight 6.8 g
Width 22 mm
Certificates
Compliance certificates RoHS
Operational conditions
Operating shock 1000 G
Operating temperature (T-T) 0 - 85 °C
Operating vibration 20 G
Storage temperature (T-T) -40 - 85 °C
Performance
Interface PCI Express 3.1
Mean time between failures (MTBF) 1500000 h
Memory type BiCS FLASH TLC
Processor
Component for PC/Laptop
Solid state drive
NVMe Yes
Storage
M.2 SSD size 2280 (22 x 80 mm)
SSD capacity 500 GB
SSD form factor M.2
Technical details
Sustainability compliance Yes
