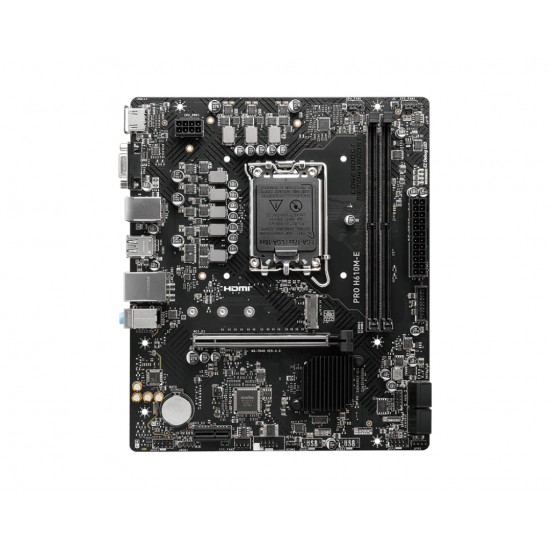

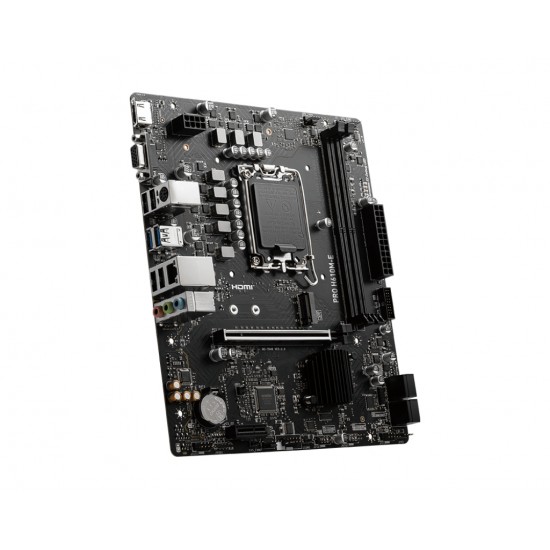

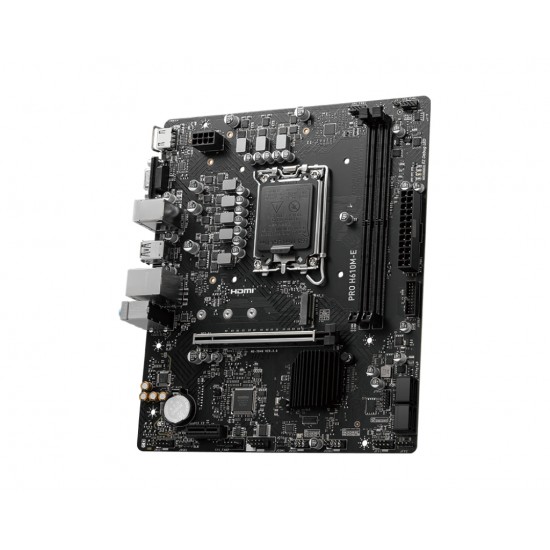

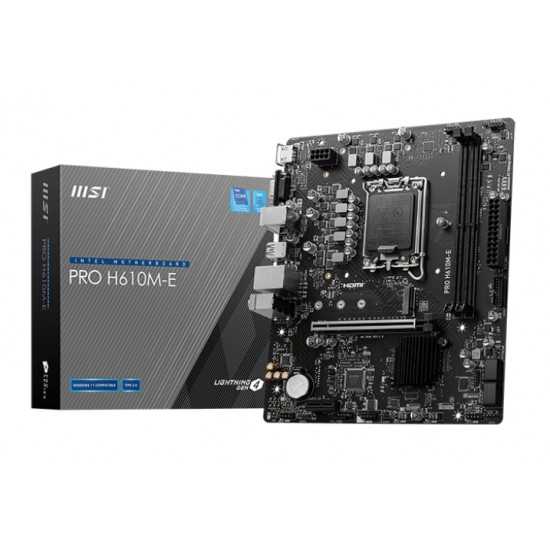

MSI PRO H610M-E MOTHERBOARD INTEL H610 LGA 1700 MICRO ATX 911-7D48-057
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
- Model: 4711377125147
- Weight: 0.70kg
- Dimensions: 26.40cm x 26.00cm x 5.50cm
- MPN: PRO H610M-E
Specifications
Design | |
Cooling type | Active |
Features | |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Loudspeakers | |
Audio output channels | 7.1 channels |
Network | |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
Ports & interfaces | |
DVI-D ports quantity | 0 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
Headphone outputs | 2 |
Microphone in | Yes |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
VGA (D-Sub) ports quantity | 1 |
Software | |
Windows operating systems supported | Windows 10, Windows 11 |
Power | |
Power source type | ATX |
Weight & dimensions | |
Depth | 236.2 mm |
Width | 200 mm |
BIOS | |
ACPI version | 6.4 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
Internal I/O | |
ATX Power connector (24-pin) | Yes |
Audio connector | Yes |
CPU fan connector | Yes |
EPS power connector (8-pin) | Yes |
Front panel audio connector | Yes |
Number of chassis fan connectors | 2 |
Number of COM connectors | 2 |
Number of SATA III connectors | 4 |
Thunderbolt headers | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
Memory | |
ECC сompatibility | Non-ECC |
Maximum internal memory | 96 GB |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory clock speeds | 5600 MHz |
Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
Other features | |
USB 2.0 connectors | 4 |
Packaging content | |
Cables included | SATA |
Drivers included | Yes |
Performance | |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
Motherboard chipset | Intel H610 |
Supported processor sockets | LGA 1700 |
Processor | |
Component for | PC |
Processor manufacturer | Intel |
Processor socket | LGA 1700 |

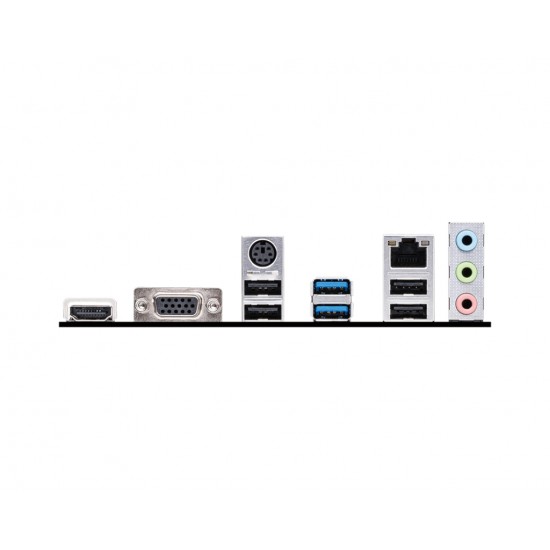

Rear panel I/O ports | |
PS/2 ports quantity | 1 |
Storage | |
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Technical details | |
Supported memory types | DDR5-SDRAM |
