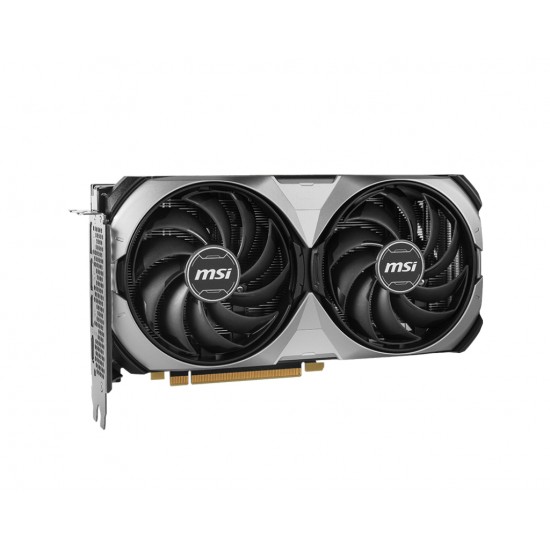

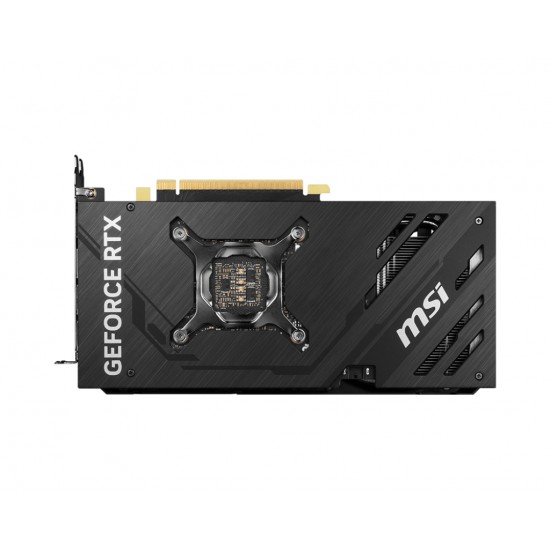

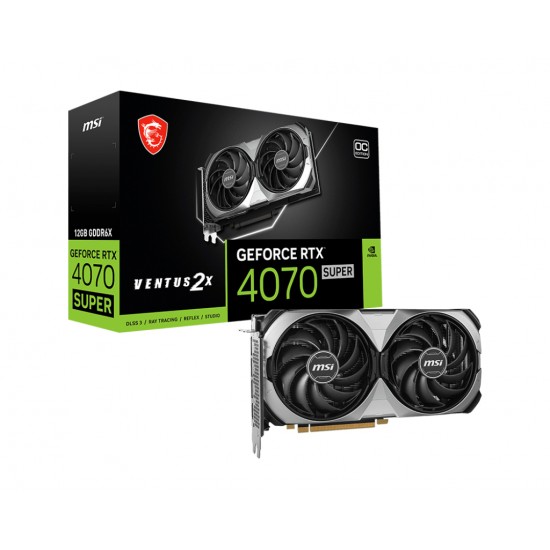

MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658

MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
MSI GEFORCE RTX 4070 SUPER 12GB VENTUS 2X OC 912-V513-658
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.

REVOLUTIONARY

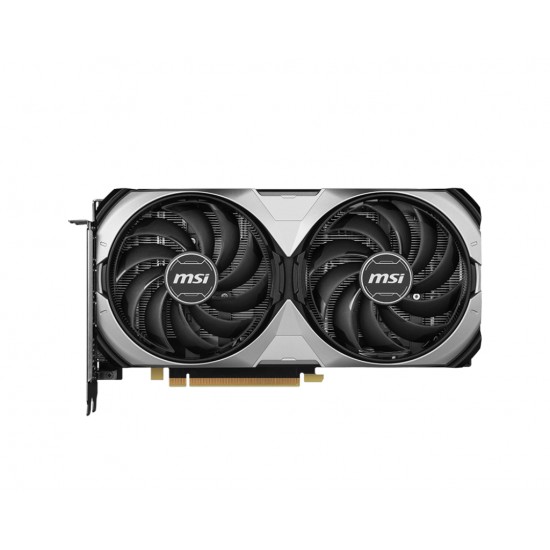

DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.

CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.

DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
  • Model: 4711377171281
  • Weight: 1.00kg
  • Dimensions: 31.50cm x 19.20cm x 7.50cm
  • MPN: GEFORCE RTX 4070 SUPER 12G VENTUS 2X OC

Specifications

Ports & interfaces
Mini HDMI ports quantity 0
Design
Cooling technology MSI TORX Fan 4.0
Cooling type Active
Form factor Full-Height/Half-Length (FH/HL)
Number of fans 2 fan(s)
Product colour Black, Silver
Features
Supplementary power connectors 1x 8-pin
Ports & interfaces

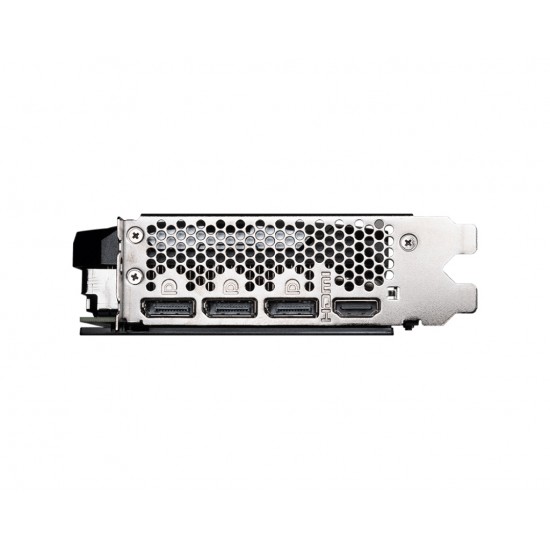

DisplayPort version 1.4a
DisplayPorts quantity 3
HDMI ports quantity 1
HDMI version 1.2a
Mini DisplayPorts quantity 0
Ports & interfaces
DVI-D ports quantity 0
DVI-I ports quantity 0
Interface type PCI Express 4.0
Thunderbolt 3 ports quantity 0
Power
Minimum system power supply 650 W
Power consumption (typical) 220 W
Power supply location External
Weight & dimensions
Depth 43 mm
Height 125 mm
Length 242 mm
Weight 680 g
Packaging data
Package type Box
Package weight 998 g
Memory
Discrete graphics card memory 12 GB
Graphics card memory type GDDR6X
Memory bandwidth (max) 21 GB/s
Memory bus 192 bit
Other features
TV tuner integrated No
Performance
AMD FreeSync No
DirectX version 12 Ultimate
Dual Link DVI No
Graphics processor GeForce RTX 4070 SUPER
NVIDIA G-SYNC Yes
OpenGL version 4.6
Printing
Maximum resolution 7680 x 4320 pixels
Processor
CUDA Yes
CUDA cores 7168
Graphics processor family NVIDIA
Maximum displays per videocard 4
Parallel processing technology support Not supported
Processor boost clock speed 2505 MHz
Processor frequency 2520 MHz
