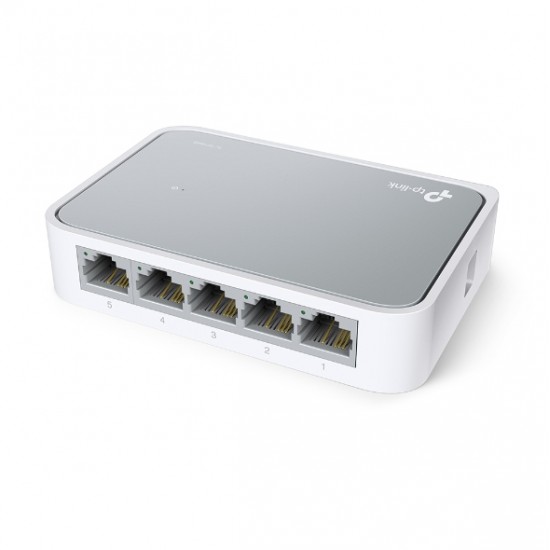

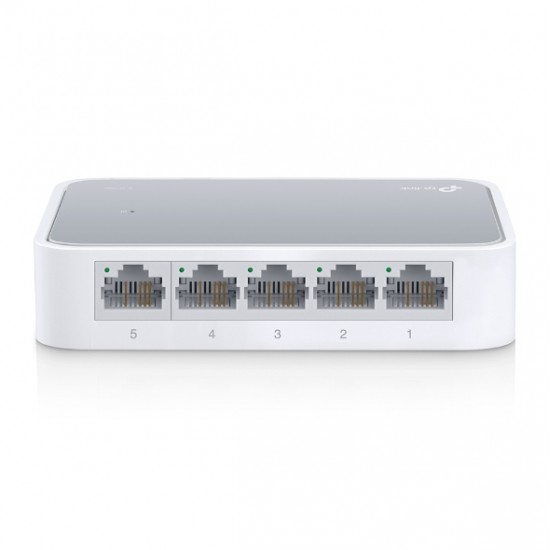

TP-LINK SWITCH 5 PORT 10/100 TL-SF1005D
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
- Model: 6935364020064
- Weight: 0.18kg
- Dimensions: 11.00cm x 9.00cm x 8.50cm
- MPN: TL-SF1005D V15
Specifications
Design | |
LED indicators | Y |
Product colour | White |
Rack mounting | N |
Other features | |
Switch type | Managed |
Web-based management | Y |
Network | |
10G support | N |
Auto MDI/MDI-X | Y |
Auto-negotiation | Y |
Ethernet LAN data rates | 10,100 Mbit/s |
Flow control support | Y |
Full duplex | Y |
Networking standards | IEEE 802.3u,IEEE 802.3x |
Spanning tree protocol | Y |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Fast Ethernet (copper) ports quantity | 5 |
Power connector | DC-in jack |
Power | |
AC input frequency | 50 Hz |
AC input voltage | 220 V |
Power consumption (max) | 1.87 W |
Power consumption (typical) | 1.87 W |
Power over Ethernet (PoE) | N |
Weight & dimensions | |
Depth | 22 mm |
Height | 70 mm |
Width | 104 mm |
Packaging data | |
Package type | Box |
Certificates | |
Certification | FCC, RoHs |
Data transmission | |
MAC address table | 1000 entries |
Store-and-forward | Y |
Switching capacity | 1.6 Gbit/s |
Ethernet LAN features | |
Supported network protocols | CSMA/CD, TCP/IP |
Operational conditions | |
Heat dissipation | 6.4 BTU/h |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Packaging content | |
Cables included | AC |
Manual | Y |
Performance | |
Copper ethernet cabling technology | 10BASE-T,100BASE-T |
Quality of Service (QoS) support | Y |
