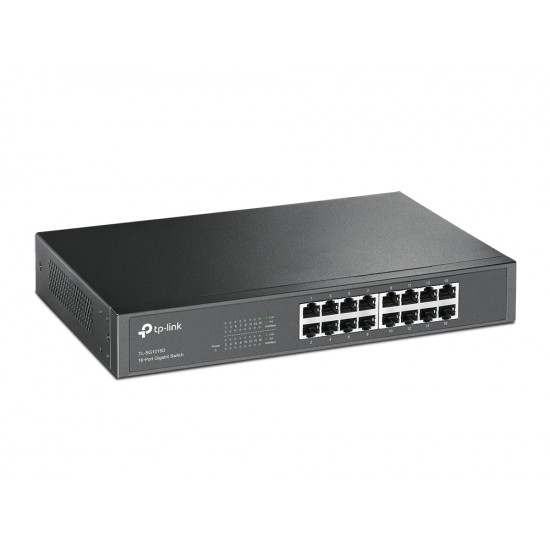

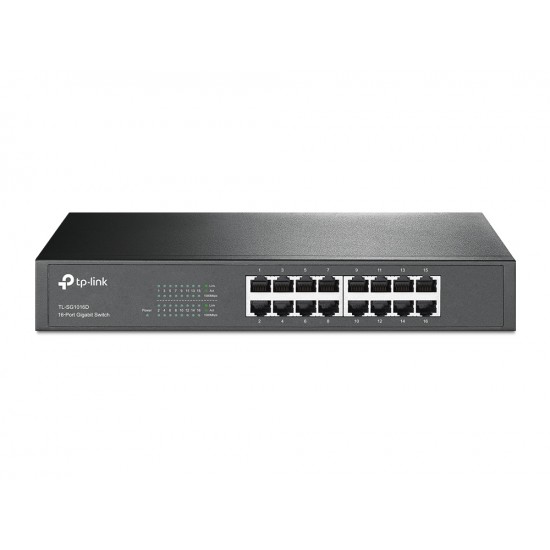

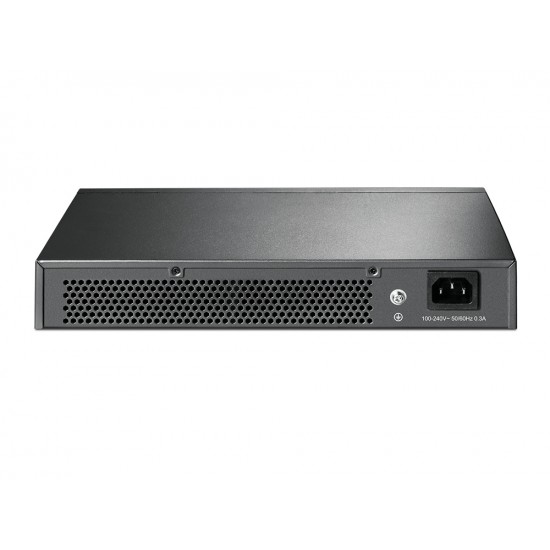

TP-LINK SWITCH 16 PORT GIGA RACK 13 TL-SG1016D
What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
- Model: 6935364020613
- Weight: 1.00kg
- Dimensions: 18.03cm x 29.46cm x 4.32cm
- MPN: TL-SG1016D V7
Specifications
Design | |
LED indicators | Y |
Product colour | Black |
Rack mounting | Y |
Stackable | Y |
Other features | |
Switch type | Unmanaged |
Network | |
10G support | N |
Auto MDI/MDI-X | Y |
Auto-negotiation | Y |
Bandwidth | 32 Gbit/s |
Cable types supported | Cat3,Cat4,Cat5,Cat5e |
Flow control support | Y |
Full duplex | Y |
Networking standards | IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 16 |
Power connector | DC-in jack |
Ports & interfaces | |
Connectivity technology | Wired |
Power | |
AC input frequency | 50 Hz |
AC input voltage | 220 V |
Power consumption (max) | 9.26 W |
Power over Ethernet (PoE) | N |
Power requirements | 100 - 240V, 50/60Hz |
Power source | AC |
Weight & dimensions | |
Depth | 180 mm |
Dimensions (WxDxH) | 294 x 180 x 44 mm |
Height | 44 mm |
Width | 294 mm |
Packaging data | |
Package type | Box |
Package height | 80 mm |
Package width | 400 mm |
Package depth | 250 mm |
Certificates | |
Certification | FCC, CE, RoHs |
Data transmission | |
Forwarding rate | 23.8 Mpps |
Jumbo frames | 10000 |
Jumbo frames support | Y |
MAC address table | 8000 entries |
Store-and-forward | Y |
Supported data transfer rates | 10/100 Mbps |
Switching capacity | 32 Gbit/s |
Ethernet LAN features | |
Supported network protocols | CSMA/CD, TCP/IP |
Operational conditions | |
Heat dissipation | 31.6 BTU/h |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 32 - 104 °F |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Other features | |
Connectivity LEDs | Y |
Packaging content | |
Cables included | AC |
User guide | Y |
Performance | |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-TX,1000BASE-T |
Maximum data transfer rate | 1 Gbit/s |
Power supply | |
Power supply included | Y |
Technical details | |
Networking features | Gigabit Ethernet |
