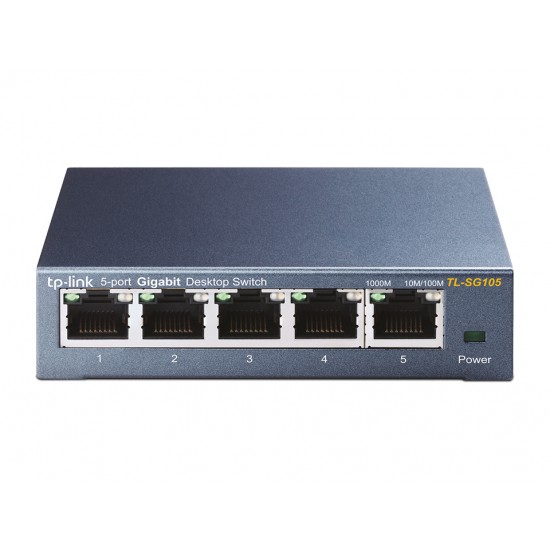

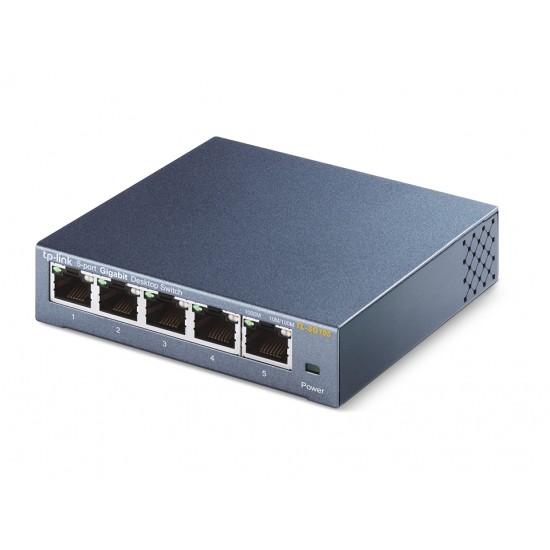

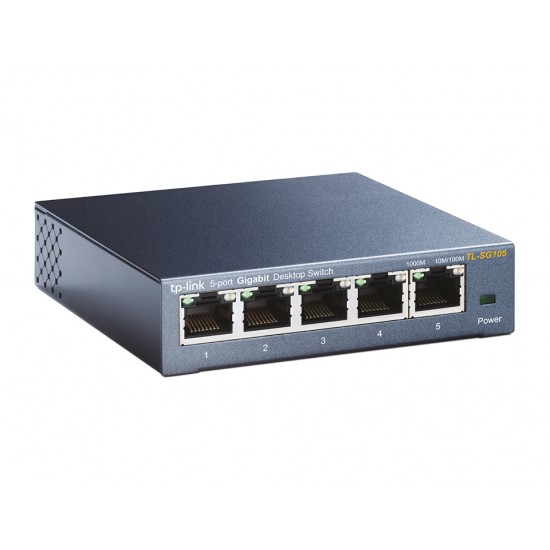

TP-LINK SWITCH 5 PORT GIGA TL-SG105

TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
TP-LINK SWITCH 5 PORT GIGA TL-SG105
What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
  • Model: 6935364021146
  • Weight: 1.00kg
  • Dimensions: 10.00cm x 10.00cm x 3.00cm
  • MPN: TL-SG105 V4

Specifications

Design
LED indicators Y
Product colour Black
Other features
Switch type Unmanaged
Network
10G support N
Auto MDI/MDI-X Y
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Y
Full duplex Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3x
Wi-Fi N
Ports & interfaces
Connectivity technology Wired
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
DC input voltage 9 V
Input current 0.6 A
Power consumption (max) 2.43 W
Power over Ethernet (PoE) N
Weight & dimensions
Depth 97.8 mm
Height 25 mm
Width 99.8 mm
Packaging data
Package type Box
Rack mount kit Y
Package height 92 mm
Package width 128 mm
Package depth 125 mm
Certificates
Certification CE, FCC, RoHS
Data transmission
Jumbo frames 16000
Jumbo frames support Y
MAC address table 2000 entries
Packet buffer memory 1 MB
Store-and-forward Y
Supported data transfer rates 10/100/1000Mbps
Multicast features
Multicast Listener Discovery (MLD) snooping Y
Operational conditions
Heat dissipation 8.29 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Other features
Power LED Y
Packaging content
User guide Y
Performance
Maximum data transfer rate 2 Gbit/s
Quality of Service (QoS) support Y
Power supply
Power supply included Y
Protocols
Switching protocols CSMA/CD
Security
IGMP snooping Y
