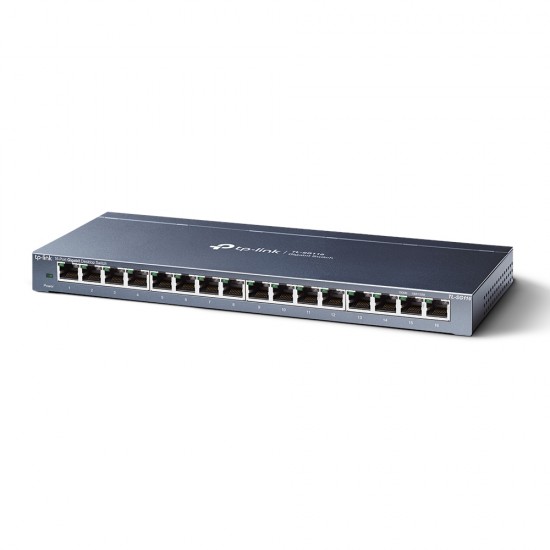

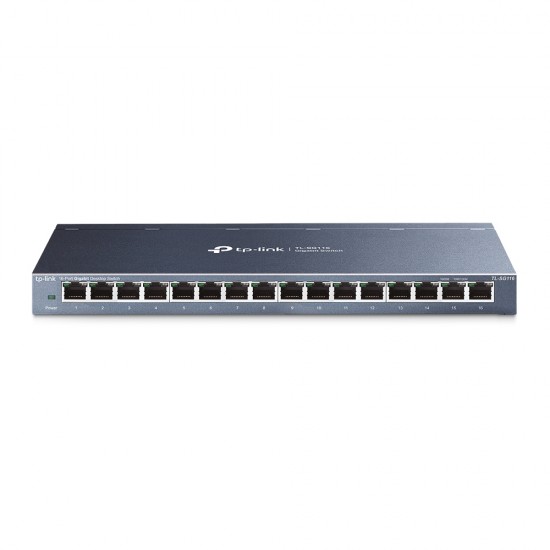

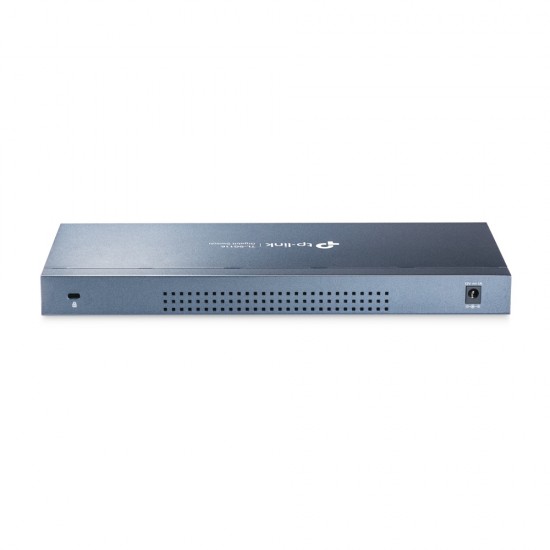

TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT

TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
TP-LINK TL-SG116 DESKTOP SWITH 16 GIGABIT
What This Product Does

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
  • Model: 6935364084325
  • Weight: 1.33kg
  • Dimensions: 28.60cm x 11.17cm x 2.54cm
  • MPN: TL-SG116 V1

Specifications

Design
Housing material Steel
LED indicators Y
Product colour Black
Rack mounting N
Wall mountable Y
Other features
Switch layer L2
Switch type Unmanaged
Network
10G support N
Auto MDI/MDI-X Y
Auto-negotiation Y
Flow control support Y
Full duplex Y
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
Ergonomics
Plug and Play Y
Power
AC input frequency 50 Hz
AC input voltage 220 V
DC input voltage 12 V
Input current 1 A
Output current 1 A
Output voltage 12 V
Power consumption (max) 10 W
Power over Ethernet (PoE) N
Weight & dimensions
Depth 111.7 mm
Height 25.4 mm
Width 286 mm
Packaging data
Package type Box
Rubber feet Y
Package height 70 mm
Package width 412 mm
Package depth 170 mm
Certificates
Certification CE, FCC ,RoHS
Data transmission
Forwarding rate 23.8 Mpps
Jumbo frames 10000
Jumbo frames support Y
MAC address table 8000 entries
Packet buffer memory 4.1 MB
Store-and-forward Y
Switching capacity 32 Gbit/s
Multicast features
Multicast support Y
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Packaging content
AC adapter included Y
Cables included AC
Quick start guide Y
Performance
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Quality of Service (QoS) support Y
Power supply
Power supply included Y
Security
IGMP snooping Y
