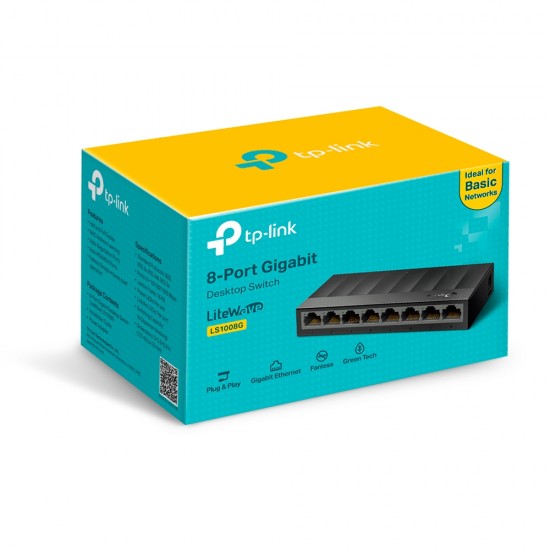

TP-LINK SWITCH 8 PORT GIGABIT DESKTOP LS1008G
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- Model: 6935364085476
- Weight: 1.00kg
- Dimensions: 13.10cm x 9.00cm x 8.40cm
- MPN: LS1008G V1
Specifications
Design | |
Housing material | Plastic |
Product colour | Black |
Wall mountable | Y |
Other features | |
Switch type | Unmanaged |
Network | |
10G support | N |
Auto MDI/MDI-X | Y |
Auto-negotiation | Y |
Flow control support | Y |
Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power | |
DC input voltage | 5 V |
Input current | 0.6 A |
Power consumption (max) | 3.9 W |
Power over Ethernet (PoE) | N |
Weight & dimensions | |
Depth | 66.5 mm |
Height | 24 mm |
Width | 127.2 mm |
Packaging data | |
Package type | Box |
Package height | 84 mm |
Package width | 131 mm |
Package depth | 90 mm |
Certificates | |
Certification | CE, FCC, RoHS |
Data transmission | |
Forwarding rate | 11.9 Mpps |
Jumbo frames | 16000 |
Jumbo frames support | Y |
MAC address table | 4000 entries |
Packet buffer memory | 1.5 MB |
Store-and-forward | Y |
Switching capacity | 16 Gbit/s |
Operational conditions | |
Heat dissipation | 13.299 BTU/h |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Packaging content | |
Quick start guide | Y |
Power supply | |
Power supply included | Y |
