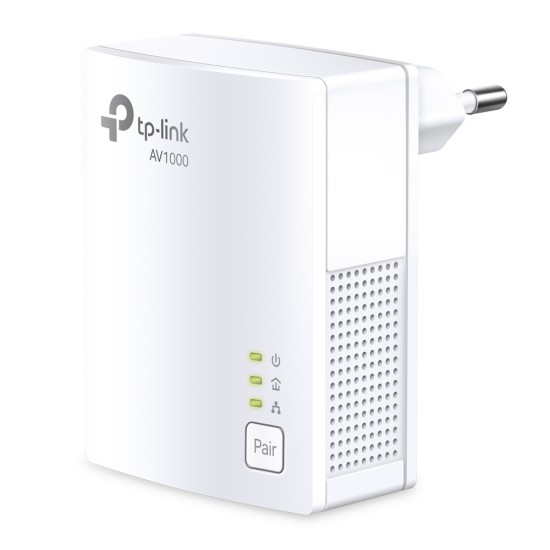

TP-LINK POWERLINE NETWORK ADAPTE KIT 1000 MBITS WHITE 2PC(S) TL-PA7017

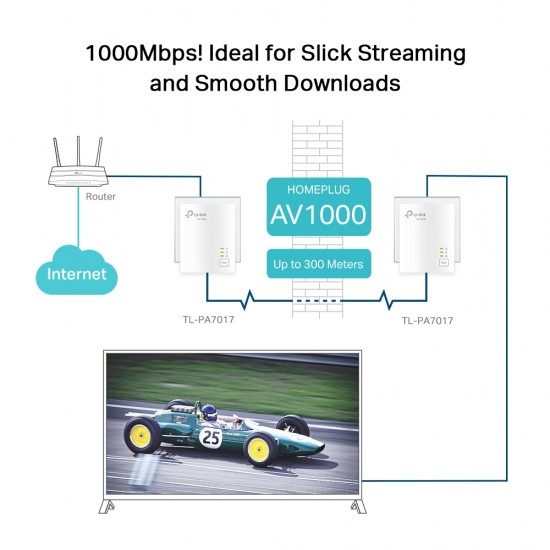

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

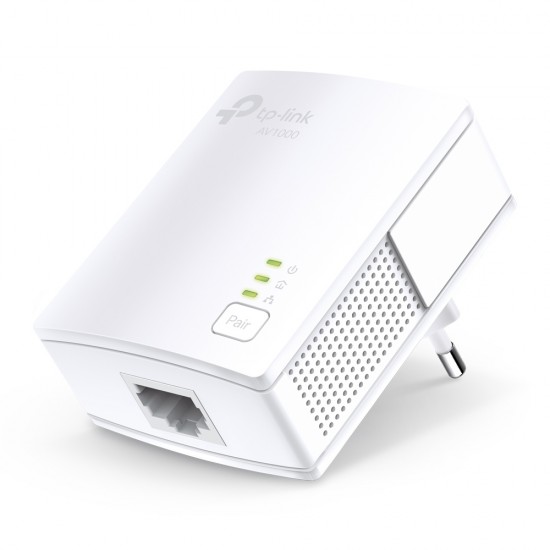

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.
Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.
Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
- Model: 6935364089054
- Weight: 0.44kg
- Dimensions: 19.00cm x 13.50cm x 10.00cm
- MPN: TL-PA7017 KIT
Specifications
Design | |
LED indicators | LAN, PLC, Power |
Product colour | White |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Wi-Fi | No |
Software | |
Mac compatibility | Yes |
Windows operating systems supported | Yes |
Ergonomics | |
Plug and Play | Yes |
Power | |
AC input frequency | 50 Hz |
AC input voltage | 220 V |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 2.3 W |
Weight & dimensions | |
Depth | 28.5 mm |
Height | 52 mm |
Width | 65 mm |
Packaging data | |
Package height | 100 mm |
Package width | 190 mm |
Package depth | 136 mm |
Package weight | 410 g |
Antenna | |
Antenna type | Internal |
Certificates | |
Certification | CE |
Compliance certificates | RoHS |
Logistics data | |
Harmonized System (HS) code | 85171800 |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Packaging content | |
Cables included | LAN (RJ-45) |
Quantity per pack | 2 pc(s) |
Quick installation guide | Yes |
Performance | |
Built-in power socket | No |
Maximum data transfer rate | 1000 Mbit/s |
Maximum operating distance | 300 m |
Power plug | Type F |
PowerLine standard | HomePlug AV2 |
Security | |
Security algorithms | 128-bit AES |
System requirements | |
Linux operating systems supported | Yes |
Wireless LAN features | |
Modulation | OFDM |
